KSC-4000A is a complete solution for low-power DC power consumption analysis of battery powered equipment, It can be used with Ketheley DMM7510 digit multimeter or 2280S high-precision DC power supply. The current measurement accuracy can reach up to 100pA, and the sampling rate can be up to 100000 times per second. It can accurately capture the waveform of the current flowing into the test piece, draw the waveform, analyze and calculate the raw data to provide statistical values.

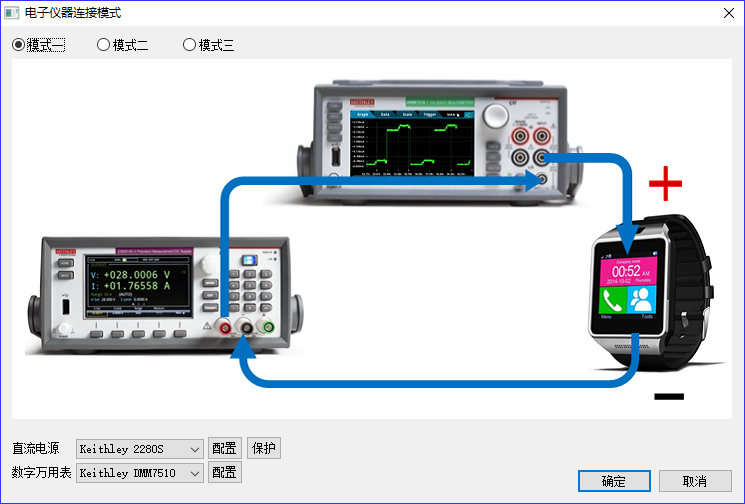

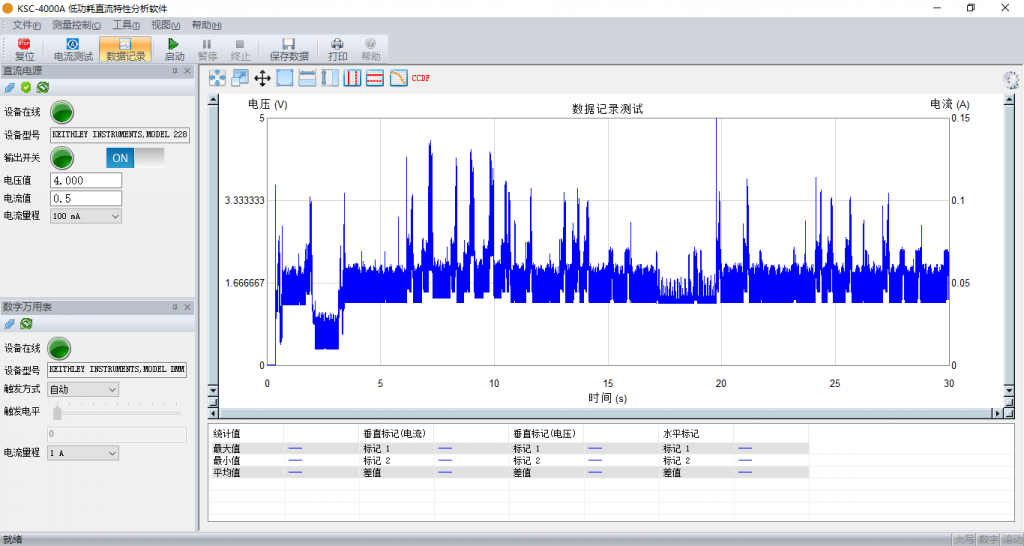

The software can be used with DMM7510 or 2280S, or control two devices simultaneously.(via LAN/USB)Read the current data to the computer for graphical waveform display while measuring. The measured raw data can be stored and opened in Microsoft Excel format for subsequent analysis.

Welcome to download the software product manual:
KSC-4000A Low power DC characteristic analysis software
